VF7

Micro.Vu U.S.A.

One Click Instant Vision Measurement Machine

VF7 is a fast, two-dimensional, high precision measurement machine.

The system is designed to minimize the need for focus adjustment and part positioning.

VF7 touch panel allows users to automatically search for measurement programs, execute them, and display measurement results.

Micro.Vu’s InSpec Metrology Software provides point-and-click simplicity, proprietary edge detection, advanced lighting control and calibration, multi-sensor integration, automated calibrations, and a clear display of measurement data and tolerances.

The systems include our InSpec Metrology Software, high and low image magnification, advanced LED lighting, and feature a single USB connection to your workstation computer.

VF7
MACHINE
OVER
VIEW

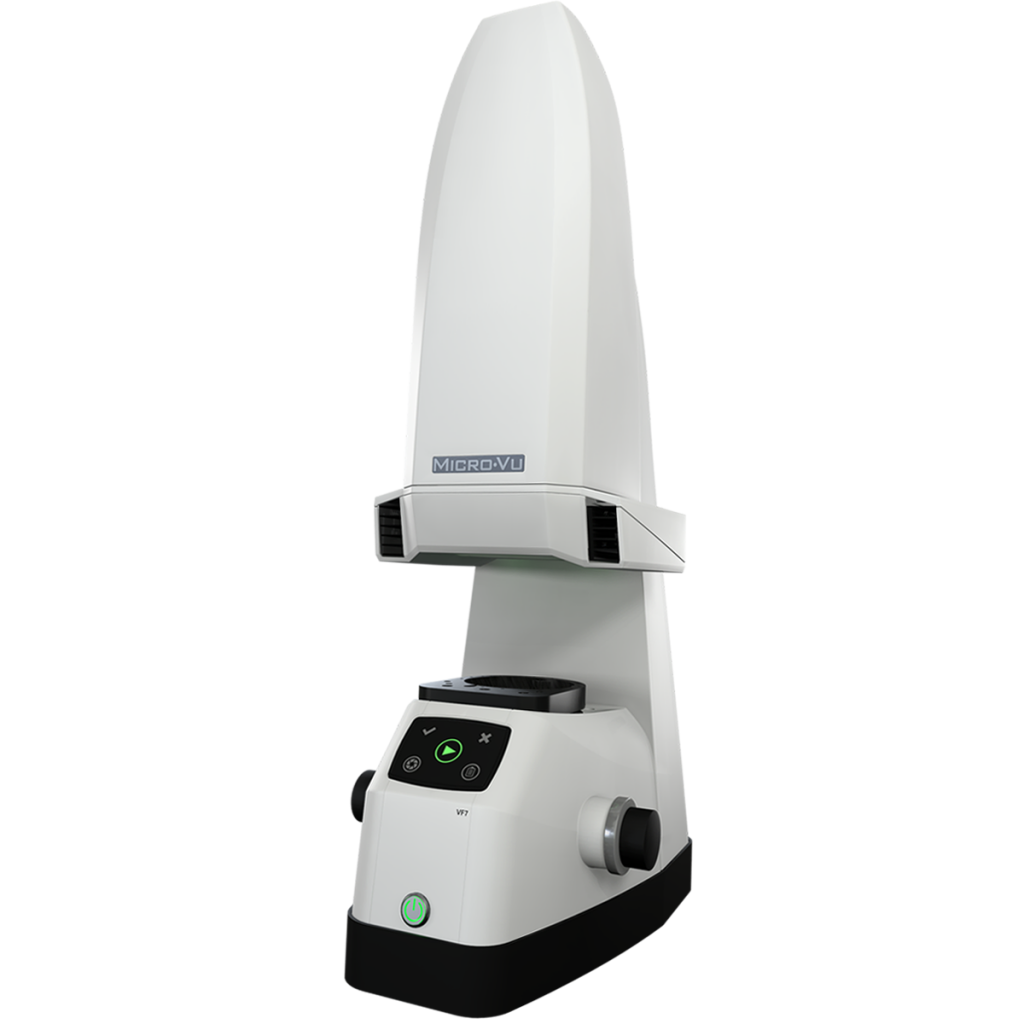

VF7 Machine

Features

Low and High Magnification Optical System

Large Measurement Area

  • Measure Entire Part in One Snapshot

Large Measurement Range

  • Minimizes Measurement Error
  • Minimizes Focus Adjustments

Instant Zoom

  • High Resolution Camera

Advanced Lighting System

  • 8 Channel Ringlight
  • Axial Surface Light
  • Profile Backlight

Automatic Part Identification

  • Automatically Adjusts to Part’s Orientation
  • Minimal Part Fixturing Required

Scratch Resistance Stage Glass

Single Snapshot Measurement

VF7

Machine Specifications

IMAGE MAGNIFICATION MEASUREMENT CAPACITY MEASUREMENT RANGE
LOW 69.3 X 49.6 mm 30 mm
HIGH 17.3 X 12.4 mm 3 mm
MACHINE DIMENSIONS STAGE POSITION RANGE STAGE WEIGHT CAPACITY
290 X 453 X 883 mm 49 mm 3 kg
