VERTEX

Micro.Vu U.S.A.

Automated Multi Sensor Precision Measurement Equipment / OMM / Optical CMM / VMM / VMS

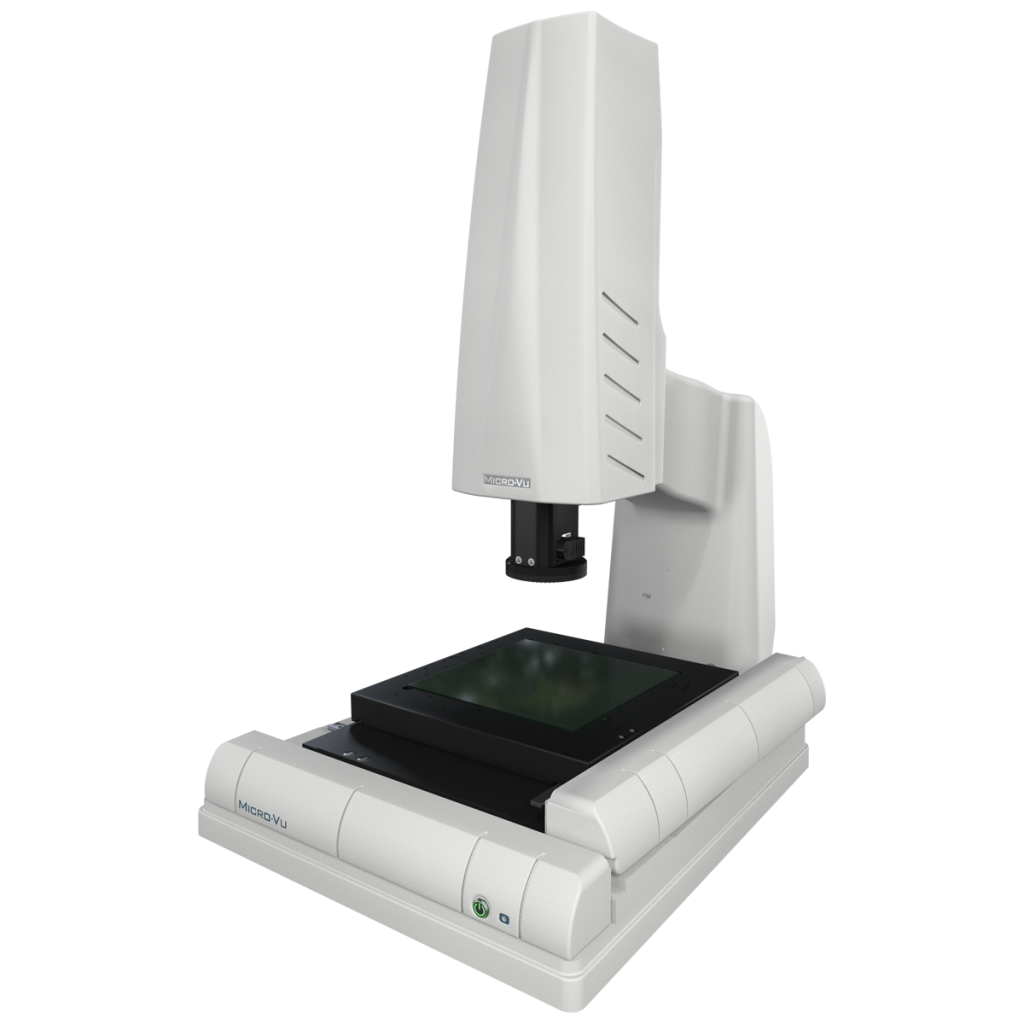

The Micro.Vu VERTEX Measuring Center is a table top system equipped with a high-resolution camera-based measuring system to get fast, accurate measurements on a wide variety of parts. VERTEX Machines can be integrated with additional Accessories such as Touch Probes, Laser Sensors, Roatory etc.

VERTEX provides vivid pictures through a programmable optical and digital zoom, supports sensitive touch probe accessories allowing measurement of smaller intricate geometry, and high-speed vertical distance measurement sensors for scanning capability that covers both specular and diffuse parts.

VERTEX includes our InSpec Metrology Software®, which provides point-and-click simplicity, proprietary edge detection, advanced lighting control and calibration, multisensor integration, automated calibrations, and a clear display of measurement data and tolerances.

VERTEX
MACHINE
SPECIFIC
ATION

VERTEX Machine

Features

High resolution digital camera

Programmable optical and digital zoom

Integrated electronic design, for better system performance and serviceability

Advanced proprietary motion control ensures high accuracy measurements at high speed

Supports sensitive touch probes accessories

Programmable profile, surface and coaxial lights

Single USB connection to computer

Integrates high speed vertical distance measurement sensors for scanning capability

Supports RSD-60 Rotary Device

Includes automated calibration procedures

VERTEX

Machine Specifications

PHYSICAL VERTEX 261 VERTEX 341 VERTEX 342
Measurement Volume [mm] 250 × 160 × 160 315 × 315 × 160 315 × 315 × 250
Stage Capacity [kg] 10 20 20
XY Accuracy 2.0 + L/250 2.6 + L/175 2.6 + L/175
Z Accuracy 2.0 + L/200 3.0 + L/150 3.0 + L/100
XY Max Speed [mm/s] 250
Z Max Speed [mm/s] 100
Linear Resolution [µm] 0.1
