3D & 2D

Inspection of Components

Geo Informatics specializes in 3D/2D Inspection of Assemblies and Child parts. With experience in such projects exceeding 10,000 parts, we have the technology and experience to inspect parts as small in size as a need to assemblies as big as an aircraft. We can provide precise and accurate measurement required to inspect even the tightest tolerance.

Why Geo Informatics?

  1. Experience with inspection 1000s of different types of parts
  2. Long experience with working with Tier 1 and OEMS
  3. Organization with biggest range of tools to inspect a component –

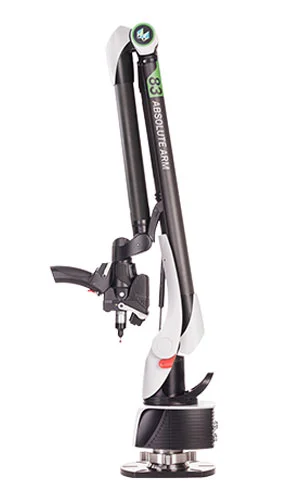

    a. Articulated arm based probing system (Portable Coordinate Measurement Machine) x2
    b. Laser Scanner x2

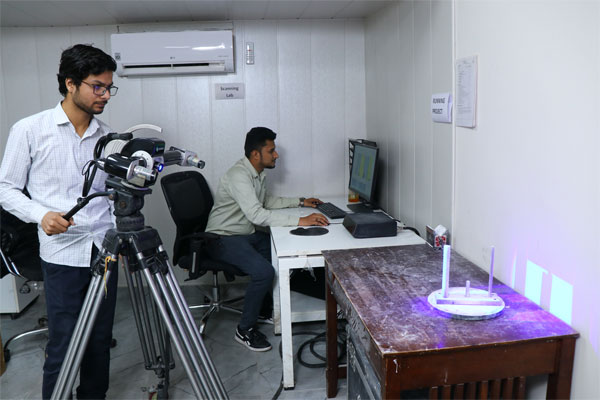

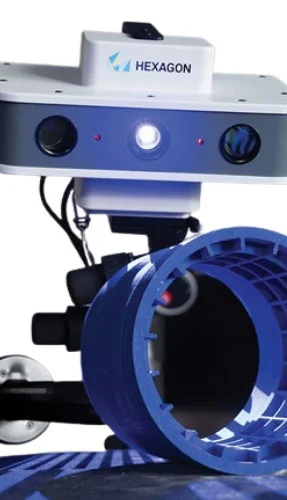

    c. Blue structured light scanner x3

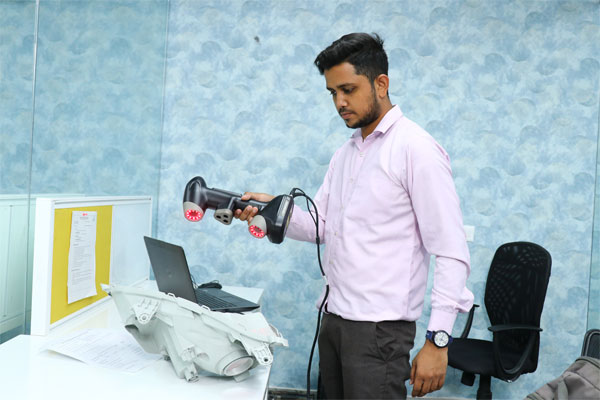

    d. Hand held scanner

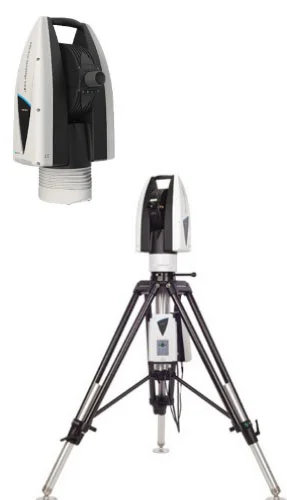

    e. Leica Laser tracker AT960
    f. Optical tracker (Metronor) x 2

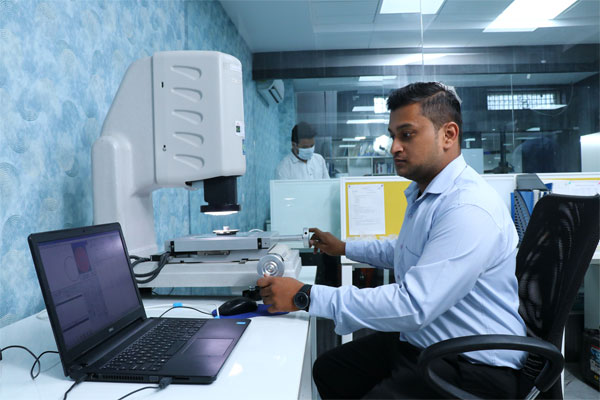

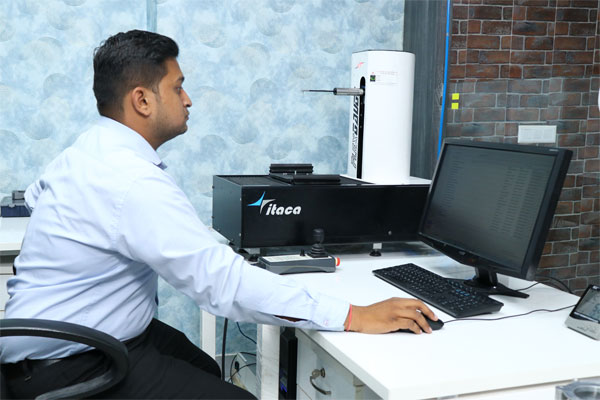

    g. Vision Measurement Machine x 3
    h. Co-ordinate Measurement Machine
  4. All our equipment are from countries such as USA and European nations, providing best in class quality accuracy and precision with reliable results

  5. 10+ dedicated application engineers only for scanning and inspection

  6. Experience with different types of parts such as tools dies and molds, machined parts, casting parts, rubber parts, gear parts, assemblies, sheet metal components etc

  • Has a scanning accuracy of 10-30 microns depending upon the model and the part features
  • Good for scanning precise small components from a range of 0 – 1m
  • Has a Scanning accuracy of 30 – 70 microns depending upon the machine model and the part features
  • Good for scanning mid to large size components from 2m to 5m
  • Can probe parts up to a range of 5 to 15 m in a single sitting

  • Provides an accuracy of 0.1 mm to 1mm depending upon the size of the part

  • Used to scan and probe big components up to a part size of 10m in a single shot and 80m in multiple shots
  • Can give an accuracy anywhere between 0.1 mm to 1 mm depending upon the size of the parts

3D & 2D
INSPECTION

What Processes geo Informatics follows for 3D/2D Inspection

Workflow we follow for 3D Inspection using Non-Contact Scanners

  1. Input – Physical Part and CAD model
  2. The Part is scanned with a 3D Scanner either blue light or Laser in nature

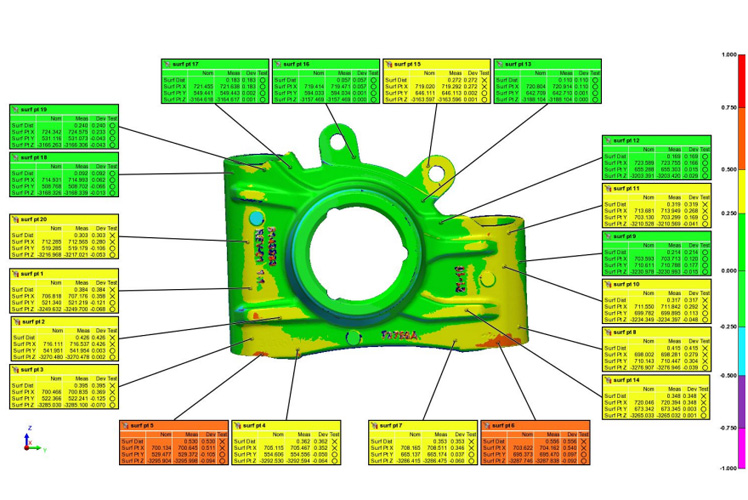

  3. The scanned data of the part is compared against the CAD model to generate a Comparison report which shows a color report of how much material is extra or less than the requirement
    A representation is shown of whether the component is within tolerance or not
  4. The part can be fit on CAD model in multiple methods –
    a. Best fit alignment
    b. PLP (Plane Line Point) alignment
    c. RPS (Reference Point System) alignment

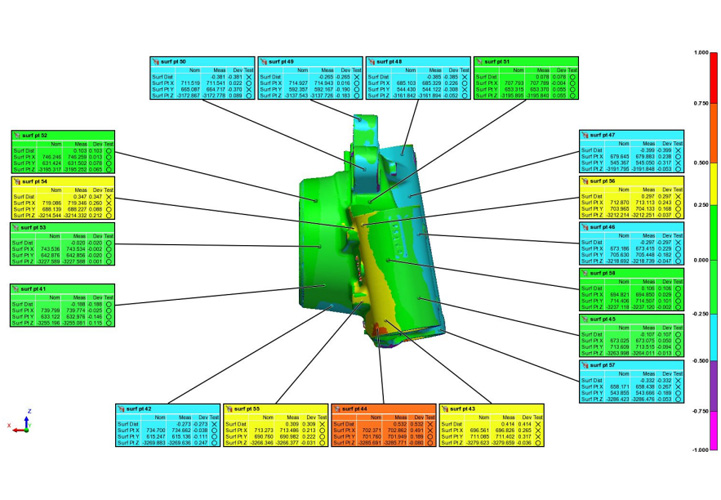

  5. Various surface points are taken on the 3D part to show the deviation of the component in all the X Y and Z dimensions
Output – 3D color report showing deviations in the part with coordinates

Workflow 3D inspection using Articulated arms with touch probes

  1. Input – Physical Part and CAD model
  2. The physical part is aligned to the CAD model using various alignment methods
  3. The trigger touch probe touches the profile on the physical part and various points are generated which are compared against the CAD model
  4. A report with deviation in X Y and Z is obtained of that point in comparison to the CAD is found

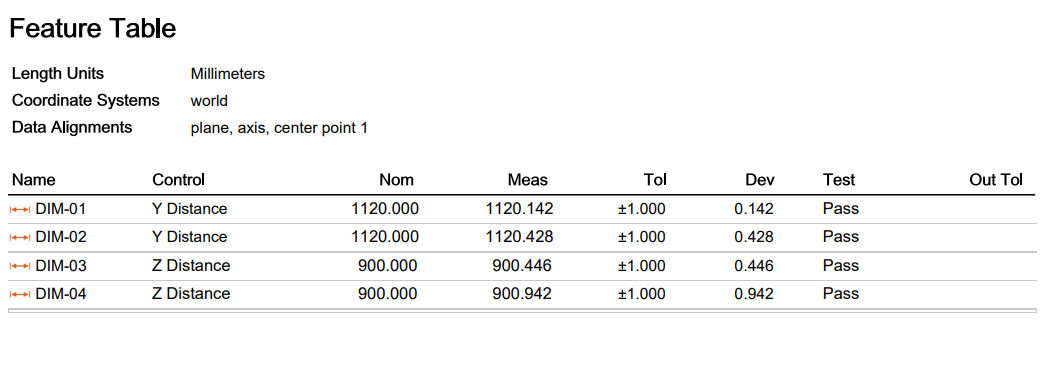

Output – Report with Deviation points

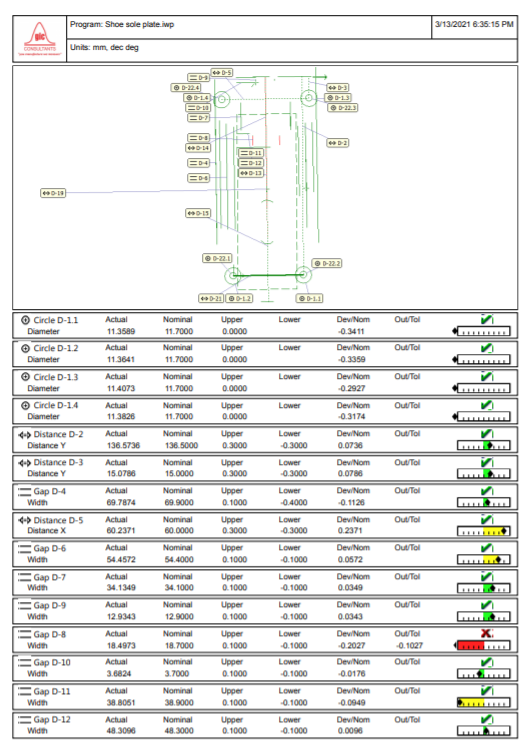

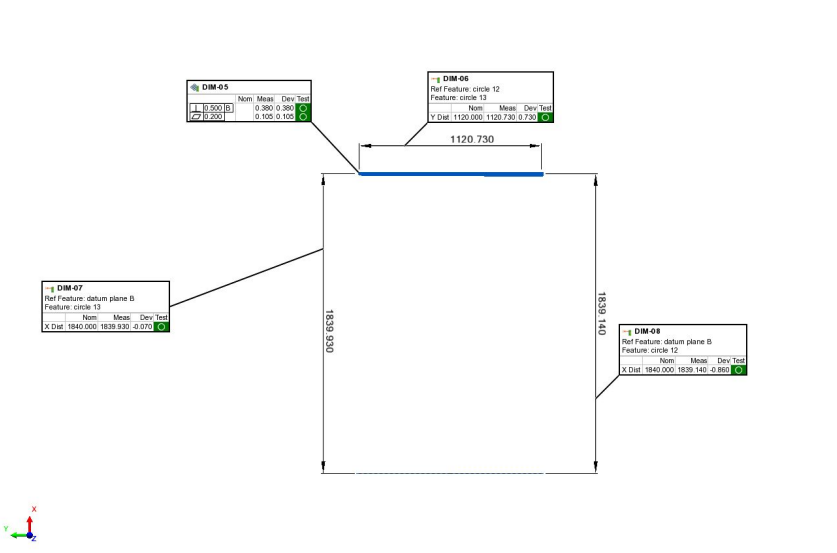

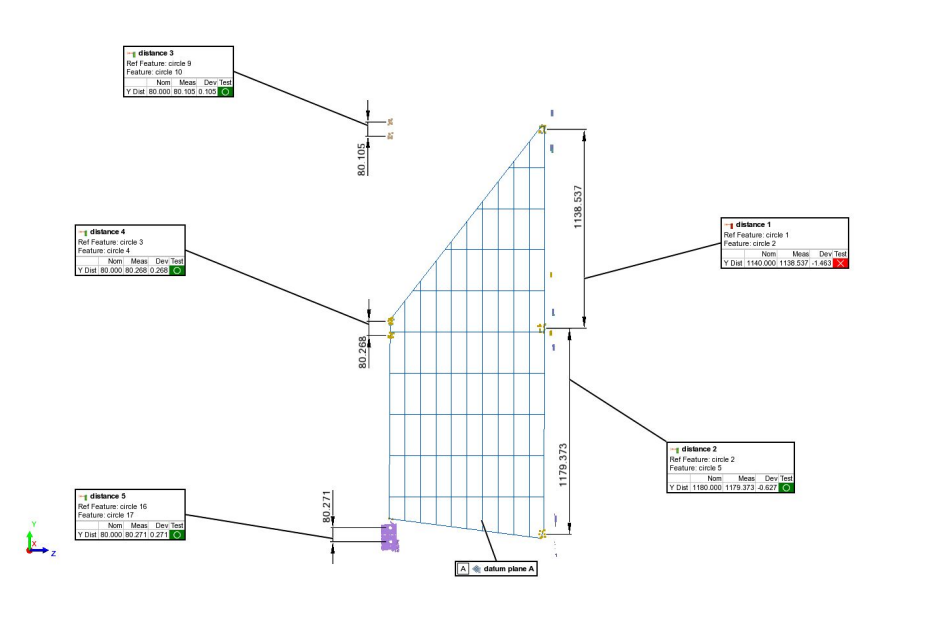

Workflow of 2D Inspection with reference to 2D Drawing

  1. Input – Physical part and 2 D drawing
  2. The physical part is scanned and a section is cut from the point cloud data
  3. The section which has been cut from the point cloud data is then compared against the 2D drawing to give accurate inspection results

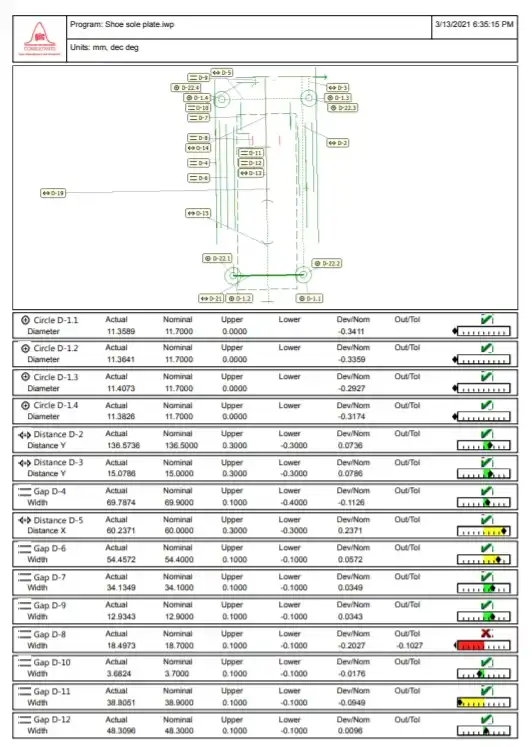

Output – Report with deviation of dimensions

How do we support our customers with our services?

  1. If the part is small in size and weighs less, we can bring the part to our lab and inspect the component
  2. If the part size is big and is heavy, we can bring portable equipment to you premises for your Inspection. We do provide services for the customer onsite
  3. Geo Informatics strictly follows the confidentiality of the customer and their parts

How does Geo Informatics price their services

Geo Informatics does the pricing of its services either in

  1. Pricing per part depending upon Scope of Work
  2. Hiring of a machine for certain number of days
  3. Contract based hiring for large orders

Where all are Geo Informatics labs present across the Country

Geo Informatics has designers in Cities such as

  • Delhi / Ghaziabad – Near Kushambi Metro station
  • Bangalore – Near Peenya Industrial Area
  • Chennai
  • Jamshedpur
  • Pune

Frequently Asked Questions

The need for 3D/2D Inspection using such advanced tools is for parts is where either the tolerance in which the part has been manufactured is very tight or the part has a very non-geometric profile. These tools also support in the inspection of Large-sized components.

The price band of inspection of these parts can vary from 5000Rs per part and go up 50,000Rs depending upon the size complexity and number of days required for Inspection of Part.
