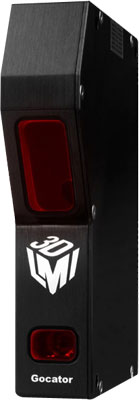

Point sensor (Gocator 1300)

3D Online Inspection Sensors By LMI

High-Speed Distance Measuring Devices

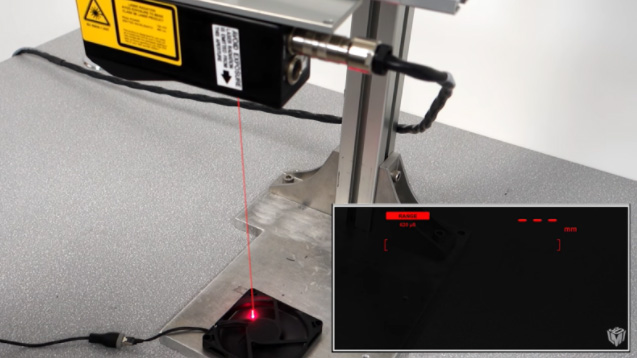

The smart laser displacement sensors in the Gocator 1300 series are the next generation of high-speed (32khZ) distance measuring devices. Gocator sensors are small and light, making them easy to network and integrate. These sensors are built to withstand industrial environments and are ready to use right out of the box for the most demanding on-line inspection applications.

  • Pre-calibrated and ready to measure
  • Scalable to a synchronized multiple sensor network
  • Small footprintfits into tight spaces
  • Setup & control via web browser
  • Rich I/O & PLC Support
  • Open-source SDK

POINT SENSOR
OVERVIEW

Model 1320 1340 1350 1365 1370 1380 1390
Resolution Z (mm) 0.0004 0.0005 0.0015 0.0025 0.0025 0.0100 0.0250

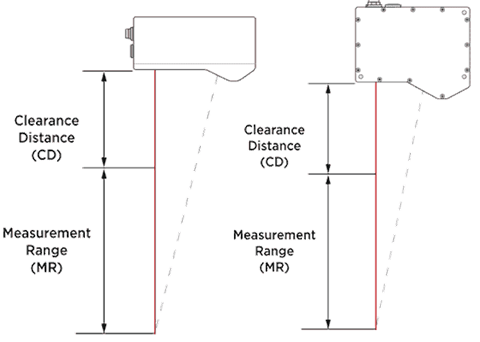

Clearance Distance (mm) 40 162.5 200 562 237.5 127 500
Measurement Range (mm) 20 95 200 375 412.5 1651 2000
