2D Vision Sensors and Vision Systems

Cognex Vision Sensors and Vision Systems not only have the capability to provide some of the most advanced machine vision solutions but also perform reliably in shop-floor conditions.

COGNEX
FEATURES

COGNEX

2D VISION SENSORS

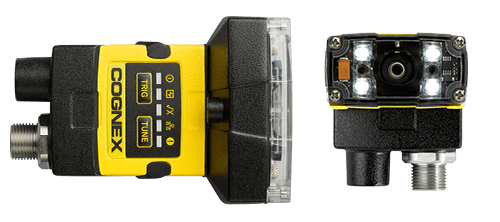

Cognex In-Sight 2000

In-Sight 2000 Vision Sensor

In-Sight 2000 Vision Sensor Features

The In-Sight 2000 vision sensors from Cognex combine the capabilities of In-Sight vision systems with the simplicity and cost-effectiveness of an industrial sensor. These vision sensors, which are ideal for error proofing applications, set new standards for value, ease of use, and flexibility, and can adapt to nearly any production line environment.

Key features include:

  • Powerful In-Sight vision tools
  • Easy setup with Easy Builder
  • Field interchangeable lighting and optics
  • Modular body design

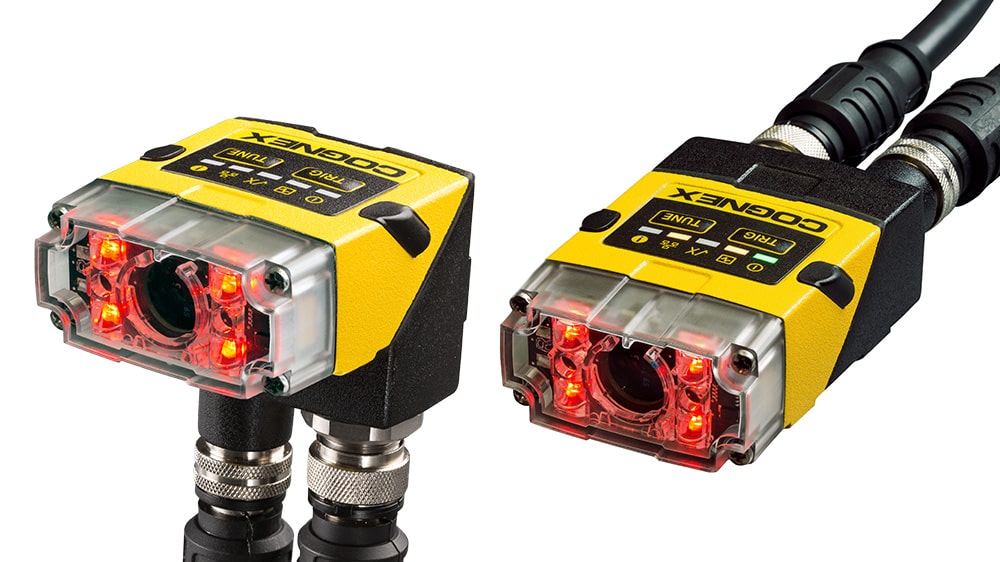

Cognex In-Sight 2000 Mini Vision Sensor

In-Sight 2000 Mini Vision Sensor Features

The Cognex In-Sight 2000 Mini’s small size expands the number of potential vision sensor applications and allows users to deploy vision sensors in more areas of their business. Models of the In-Sight 2000 Mini are 68% smaller in volume than conventional In-Sight 2000 vision sensors, allowing them to fit into compact locations. A liquid lens autofocus module is also standard on In-Sight 2000 Mini variants, allowing for faster task changeovers and the ability to adjust focus when the sensor is positioned in inaccessible locations.

Key features include:

  • Ultra-compact integrated light module
  • Autofocus powered by liquid lens technology
  • 4 cross polarized and co-linear polarized LEDs
  • Ideal for machines with limited mounting space

Cognex

2D VISION SYSTEMS

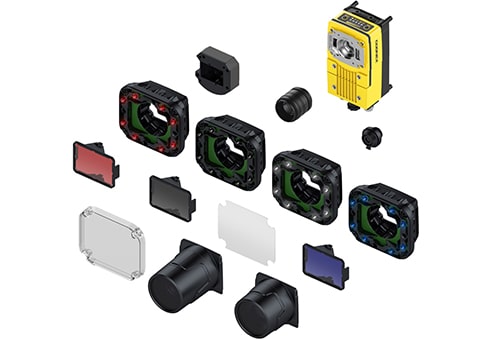

IN-SIGHT D900

(Solves challenging OCR, assembly verification, and defect detection applications)

The In-Sight D900 is a smart camera that runs In-Sight ViDi software, which is optimised for deep learning applications. This integrated solution enables factory automation customers to quickly handle demanding industrial OCR, assembly verification, and random defect detection applications that have previously gone uninspected due to the difficulty of programming them with traditional rule-based machine vision tools.

Without the use of a PC, In-Sight ViDi applications may be installed on the In-Sight D900 smart camera, making deep learning technology accessible to non-programmers. It is built on the well-known and simple-to-use In-Sight spreadsheet platform, which makes application development and factory connection much easier.

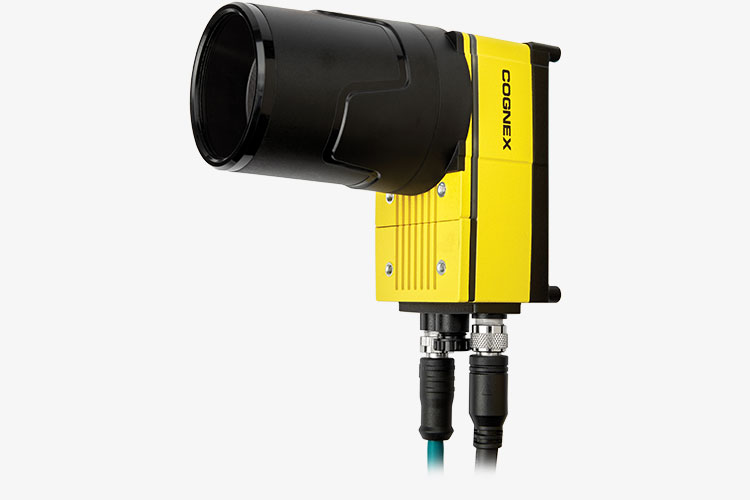

In-Sight 9000 Features

The In-Sight 9000 series of standalone vision systems is rugged and ultra-high-resolution. The In-Sight 9000 delivers high accuracy part location, measurement, and inspection over a large area, even when mounted at longer distances, thanks to its ability to acquire and process extremely detailed images. For capturing continuously moving or stationary objects, line scan and area scan image acquisition techniques are offered. In addition, the In-Sight EasyBuilder interface allows users to configure a full suite of vision
tools to handle a wide range of applications across industries.

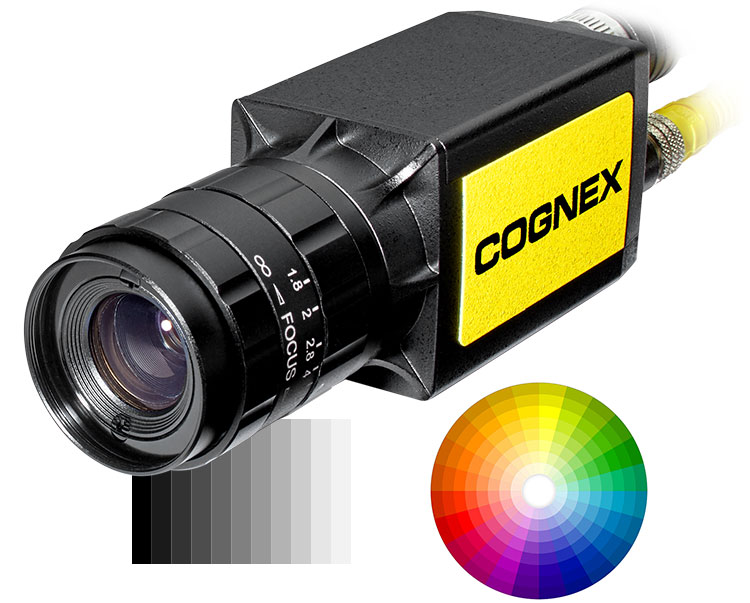

In-Sight 8000 Vision Systems Features

In the small factor of a typical GigE Vision camera, this line of ultra-compact, standalone vision systems delivers industry-leading vision tool performance. All In-Sight 8000 series devices have power over Ethernet (POE) and are the greatest standalone vision system solution for fitting into compact spaces, measuring just 35mm x 32mm x 76mm.

The In-Sight 8000 series, the world’s smallest stand-alone vision system, includes monochrome and colour vision systems with resolutions ranging from 0.3MP to 5MP. These vision systems, which support Gigabit Ethernet for high-speed communications, provide very quick acquisition and two performance levels to fulfil a wide range of machine vision requirements.

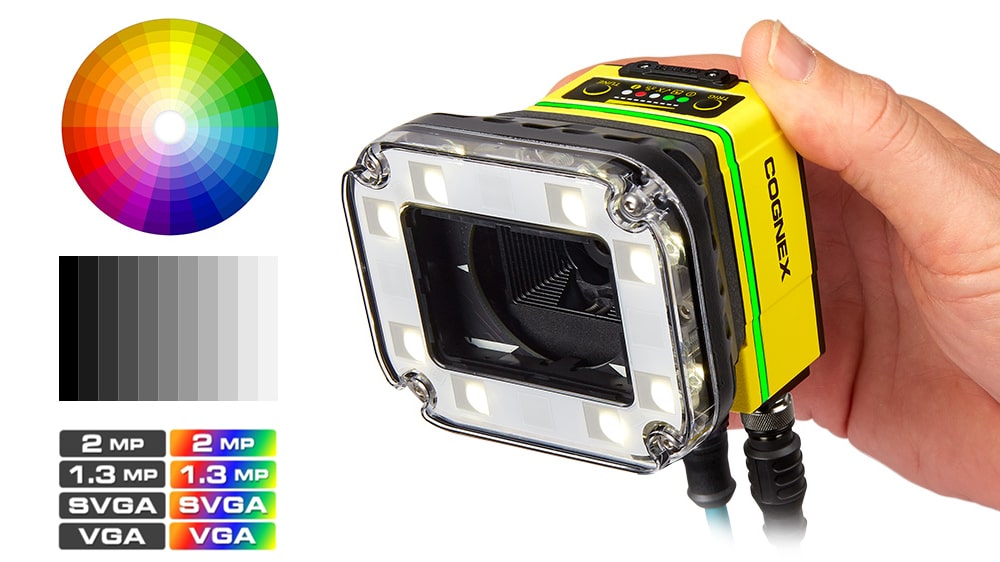

In-Sight 7000 Features

The In-Sight 7000 series is a full-featured, sophisticated vision system that inspects a wide range of items quickly and accurately across all sectors. Its small footprint fits easily into production lines with limited space, and its unique, modular architecture is extremely field-customisable to your application’s needs.

The In-Sight 7000 series incorporate a highly visible pass/fail LED indication light ring around the camera body, making it easy to observe the inspection status no matter where the system is put, in addition to internal and exterior power/control lighting options.
The In-Sight 7000 series come in monochrome and colour variations, with resolutions ranging from VGA to 5MP. From the basic tool set of the In-Sight 7500 to the fully equipped 7600, 7800, and 7900 versions, several tool configurations are available.

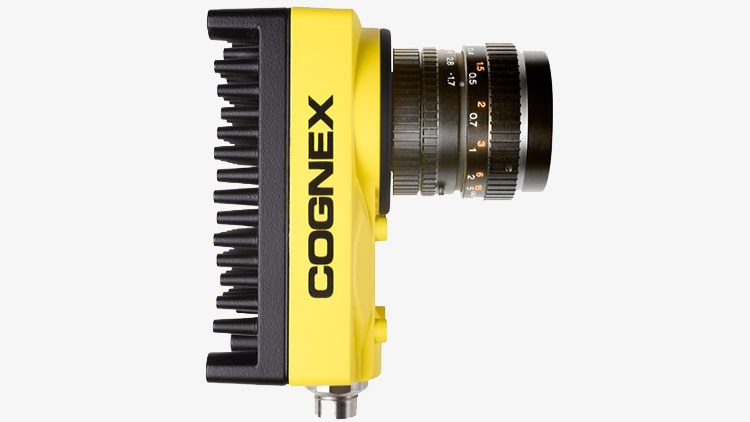

In-Sight 5600/5705 Features

The In-Sight 5705 series combine high performance and resolution to create the world’s fastest 5MP self contained vision system. The In-Sight 5705 colour vision system is the world’s only standalone 5 MP colour vision system! Both systems feature Gigabit Ethernet and the new PatMax Redline tool, which is extremely quick.

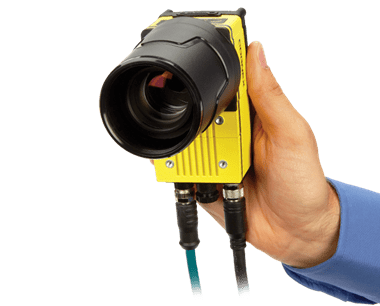

In-Sight 9902L Series Features

The In-Sight 9902L 2K line scan smart camera is a self-contained vision system with a high resolution that is suited for detailed examinations of huge, cylindrical, or continually moving objects. The 9902L captures up to 16,000 lines at 2,000 pixels per line, resulting in a 32MP image that can detect even the tiniest details and faults. To keep up with the fastest manufacturing lines, each pixel line is captured at a rate of 67,000 lines per second. This standalone vision system requires only a small view of the target part, making it an excellent choice for installations with limited field of view or mounting space.
