GapGun

THIRD DIMENSION

A Complete Surface and Feature Measurement Tool

The GapGun® is a dedicated non-contact feature measurement tool.

Measure a wide range of items and surface finishes quickly, accurately, and consistently.

TYPES OF

GapGun

GapGun PRO 2

GapGun Pro2 paired with T series sensor heads, the newest addition to the GapGun® family, combines the latest cutting-edge technology with the GapGun25+ ®’s year history. Now more resistant, but with a 3.5x higher pixel resolution for improved accuracy.

VECTRO 2

Vectro®2 analyses and examines discrete 2D profiles in a variety of industrial applications in aerospace, automotive, power generation, and consumer products manufacturing facilities in conjunction with a collaborative or industrial robot. Using a standard set of virtual tools, Vectro®2 quickly and accurately measures features such as: Gap and flush, Angles, Radii, Welds, Chamfers, Burrs

GapGun EDGE BREAK+

With the application-specific GapGun®, GapGunEdgebreak Toolkit, you can measure chamfer, break edge, and radii.

GapGun COUNTERSINK

When you utilise a GapGun countersink, you can measure countersinks quickly, accurately, and consistently.

In comparison to typical mechanical gauges, GapGun Countersink delivers a rapid, effective, and repeatable method for examining countersunk holes.

A SOLUTION FOR EVERY INDUSTRY

The Gapgun Pro2 has proven itself in a wide variety of industries.

GapGun®
FEATURES

GapGun

KEY POINTS

Infinite applications with just one tool

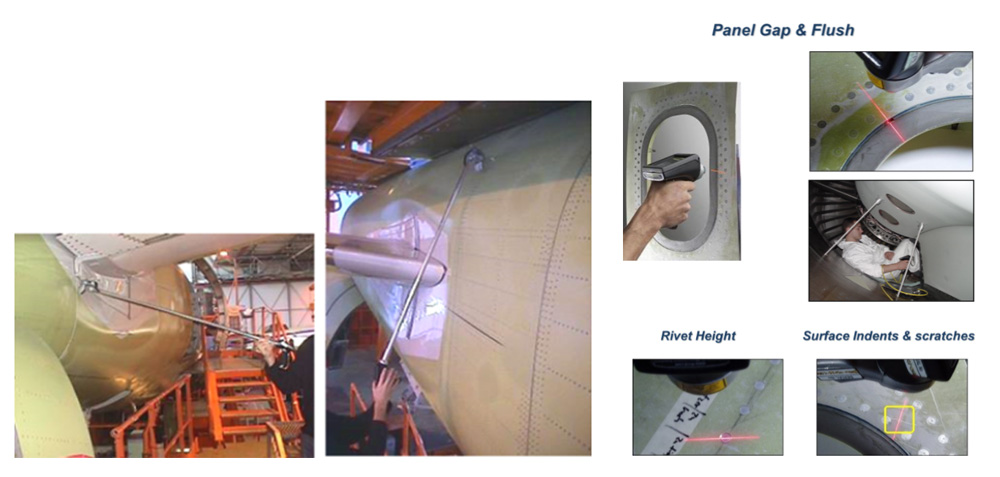

Gaps, flushes, radiuses, edge breaks, burrs, countersinks, scratches, welds, seals, angles, and more can all be measured. GapGun Pro can be used with a variety of sensor heads depending on your needs.

Get-real time data

GapGun® automatically connects to Wi-Fi and archives data as it tests for smooth productivity. Using the inbuilt wireless link, USB port, or docking station, results can be downloaded at any time.

Quick and easy to use

Operators can see how and where to measure with full-color graphical check plans. Positioning relative to the part is guided by an on-screen compass and colour coding, while sounds and vibrations inform users of in/out tolerance circumstances.

Save time when you automate manufacturing decisions

GapGun® uses real-time go/no-go judgements or statistical analysis to inspect items against their dimensional specifications
